Pneumatic Vacuum Lift - Pve52
About Pve52 Lift

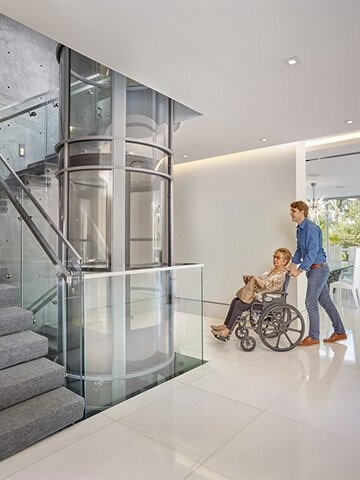

The Vacuum Elevator PVE52 is the largest model in the PVE line, specifically designed for wheelchair accessibility and spacious comfort. With an exterior diameter of 1.36 m, it can carry up to three passengers or one wheelchair user (238 kg capacity). Available with two to four stops and a maximum travel height of 10.5 meters, the PVE52 combines functionality and style for modern homes. Its panoramic design, aluminum and polycarbonate structure, and stainless steel cabin interior make it both elegant and durable.
Vacuum Elevator PVE52
This eco-friendly lift operates on pneumatic vacuum technology, eliminating the need for pulleys, pistons, or cables. It consumes very little energy on ascent and none on descent, significantly reducing operating costs and maintenance. With quick installation that requires no pit or machine room, LED lighting, multiple entry configurations, and advanced safety features, the PVE52 is the ideal home lift solution for accessibility, luxury, and peace of mind.
- Load: 238 kg Max
- Max Travel Height: 10.5m
- Application: Indoor
- Cabin dimensions (WxD): Ø1118 mm × 2007 mm (Diameter × Height) Entrance width: 813 mm
- Pit: Without
- Drive: Pneumatic (air-driven), 6 turbine motors, 6KW total power
- Conforms to: 220V, 60/50Hz, 35A single-phase power supply 24V electrical cabin control circuits
