Pneumatic Vacuum Lift - PPve30
About Pve30 Lift
The Vacuum Elevator PVE30 is one of the world’s smallest residential lifts, designed for compact homes and duplexes where space is limited. With an external diameter of just 75 cm, it accommodates one person (up to 159 kg) and operates on air pressure instead of pulleys, cables, or pistons. Its machine-room–less and pit-less design makes installation quick and simple, as the lift rests directly on the existing floor with minimal construction work required.
Vacuum Elevator PVE30

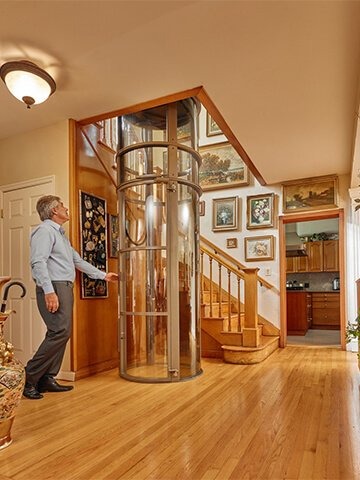

Built from aluminum and polycarbonate, the PVE30 features a transparent, panoramic cabin with 360° visibility, automatic LED lighting, and a built-in fan for comfort. It is available in up to four stops with a maximum travel height of 10.5 meters, operating efficiently with low energy consumption during ascent and none during descent. As an eco-friendly, stylish, and reliable solution, the PVE30 offers homeowners both mobility and design elegance in one compact system.
- Load: 159 kg Max
- Max Travel Height: 10.5 m (varies with 2, 3, or 4 stops)
- Application: Indoor
- Cabin dimensions (WxD) 1100 × 1400 mm, 950 × 1400 mm, 950 × 1250mm
- Pit: Without
- Drive: Pneumatic (air-driven, with 3 turbine motors using 3KW power)
- Conforms to: - 220V, 60/50Hz, 25A single-phase power supply - 24V cabin control circuits
